ams TMD26723

ams TMD26723

Product features

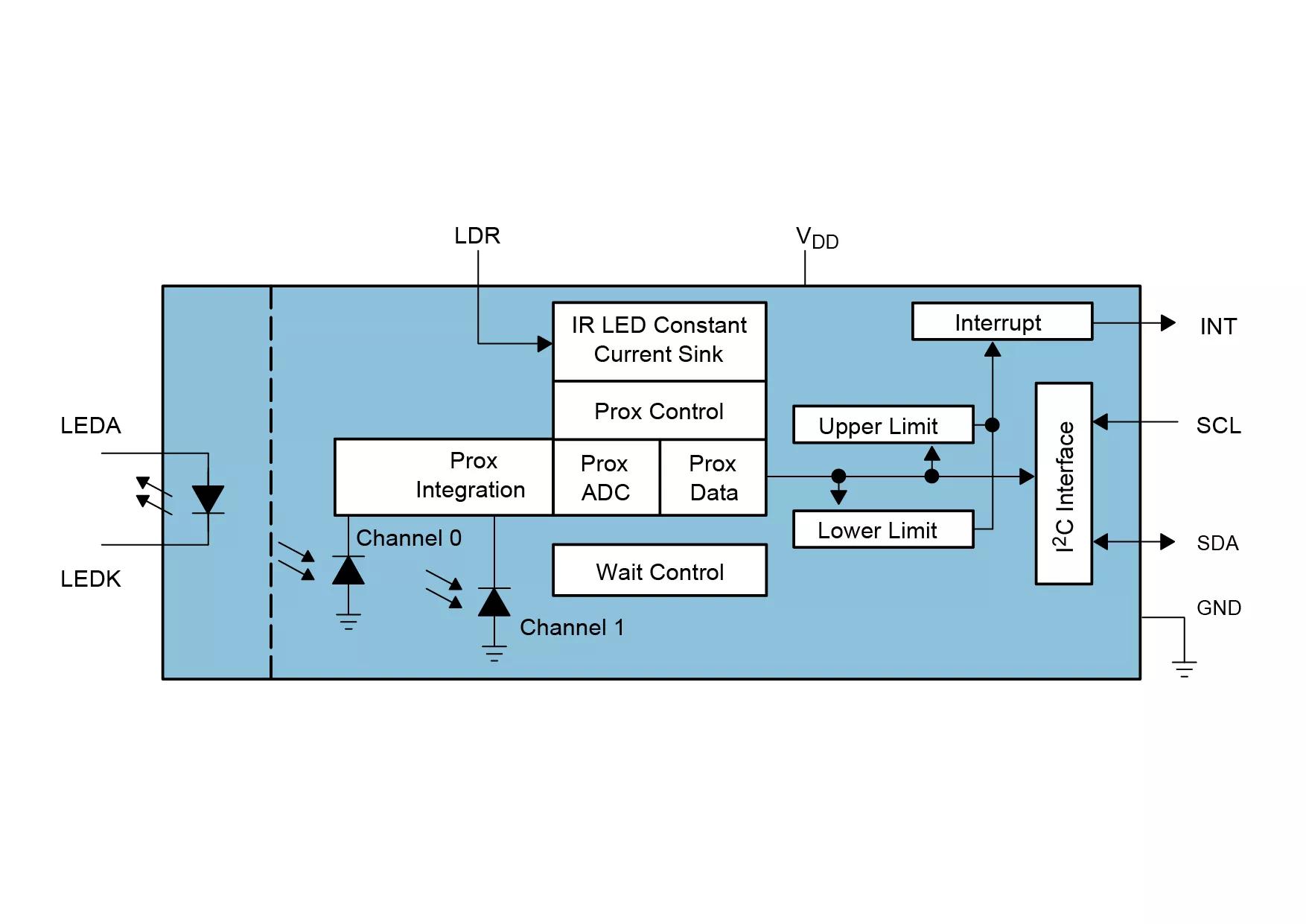

The TMD2672 family of devices provides a complete proximity detection system and digital interface logic in a single 8-pin surface mount module. The device is register-set and pin-compatible with the TMD2671 series and includes new and improved proximity detection features. The proximity detection includes improved signal-to-noise and accuracy. A proximity offset register allows compensation for optical system crosstalk between the IR LED and the sensor. To prevent false proximity data measurement readings, a proximity saturation indicator bit signals that the internal analog circuitry has reached saturation. Interrupts have been enhanced with the addition of a sleep-on-interrupt feature that also allows for a single cycle operation. The device internal state machine provides the ability to put the device in a low power mode in between proximity measurements, providing very low average power consumption.


Application note


Application note / 4.9 MB


Application note / 751.1 KB


Application note / 1.7 MB


Application note / 257.1 KB


Application note / 1.0 MB


Application note / 832.7 KB


Application note / 931.9 KB

Ordering codes

Product Type Description Order No. Availability
