ams TSL25711 Ambient Light Sensor

ams TSL25711 Ambient Light Sensor
Discontinued
×
Discontinued

描述

The TSL2571 family of devices provides ambient light sensing (ALS) that approximates human eye response to light intensity under a variety of lighting conditions and through a variety of attenuation materials. While useful for general purpose light sensing, the device is particularly useful for display management with the purpose of extending battery life and providing optimum viewing in diverse lighting conditions. Display panel and keyboard backlighting can account for up to 30 to 40 percent of total platform power. The ALS features are ideal for use in notebook PCs, LCD monitors, flat-panel televisions, and cell phones.
数据表
联系我们 支持

详情

特点

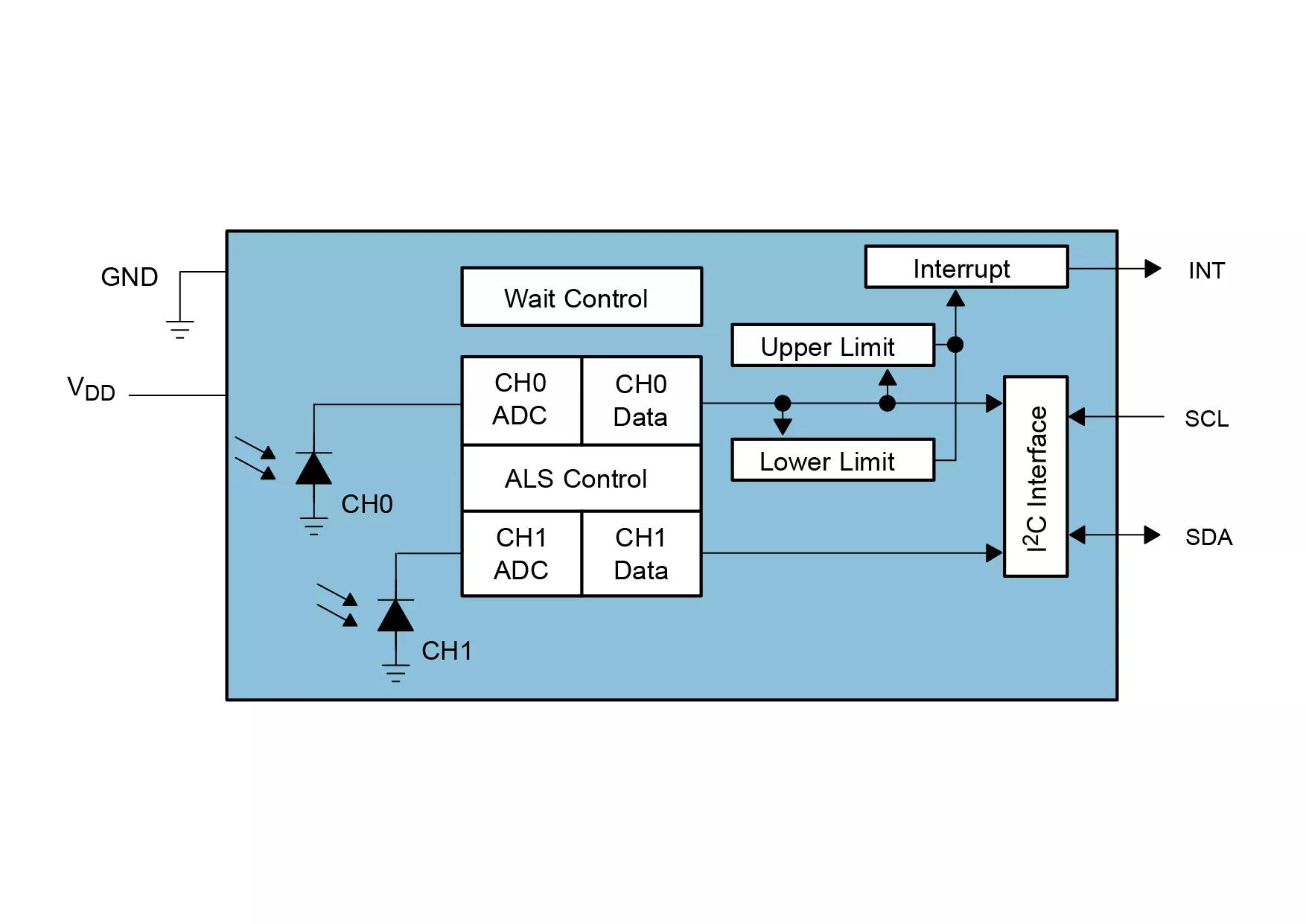

  • Patented dual-diode architecture
  • 1M:1 dynamic range
  • I2C digital interface
  • 2.5µA quiescent current
  • Available in 2mm x 2mm Dual Flat no-lead (FN) packages

优势

  • Enables operation in IR light environments
  • Enables dark room to high lux sunlight operation
  • Digital interface is less susceptible to noise
  • Enables low standby power consumption
  • Reduces board space requirements while simplifying designs

参数设置

Max. Lux
10000
Remark
Not recommended for new designs. Please see TSL2572x device family.
Package
FN (6-Pin)
Programmable
Gain, integration time, interrupt
Temperature Range [°C]
-30 to 70
Interface
I2C - VDD
Supply Voltage [V]
2.6 - 3.6

下载

其他文档请访问 下载中心

数据表

TSL2571 DS000114

Datasheet
EN
DE
CN
JP

应用说明

环境文档

生命周期文档


Related boards, kits & accessories

ams TSL2571_EVM_ST Evaluation kit

ams TSL2571_EVM_ST Evaluation kit

The TSL2571 Evaluation Kit comes with everything needed to evaluate the TSL2571 ambient light sensor. The evaluation kit comprises of a main controller board with a PIC microcontroller, an industry standard USB 2.0 interface (with an USB cable), a TSL2571 daughter card, "plug-n-play" USB HID class drivers, software documentation, and GUI software allowing users to control the ALS sensor settings as the PIC takes the TSL2571 I2C digital outputs to calculate ALS illuminance in lux approximating the human eye response.Please note that ams-OSRAM AG is discontinuing production of TSL2571.
