Details
Eigenschaften
- Low profile (0.35mm) and mini size L2.0mm x W1.0mm x H0.35mm
- An ideal 315nm-400nm UVA channel, a human eye response, photopic channel and an IR channel
- With an ultra-low noise analog front-end, up to 4096x gain and 20-bit resolution offer high sensitivity ALS detection
- Special edge-located photodiode placement which allows for a narrow bezel design down to 0.4mm width
- Equipped with 3 modulators with up to 14kHz fast sampling rate offer fast and accurate ambient light illuminance and flicker information
Vorteile
- Ideal for height and space constrained application, such as smart band, watch, narrow bezel smartphone
- Provides accurate ambient light illuminance, UVA and up to 14kHz flicker information
- Reduces board space requirements and enables off-center system design, enhances industrial design flexibility of sensor apertures sizes and shapes
- High sensitivity enables the device to work behind a low transmissivity covering glass with remaining providing an accurate ALS detection
Parameter
Max. Lux
[lux]
65000
Package
OLGA, Pin count 6
Remark
Integrated Capabilities and Components: UVA channel
Supply Voltage
[V]
1.7 - 2.0
Temperature Range
[°C]
-30 to 85
Programmable
Gain, interrupt, integration time
Interface
I2C - 1.8V
Anwendungsfelder
Bestellnummern
| Produkttyp | Beschreibung | Bestellnummer | Verfügbarkeit |
|---|---|---|---|
| TSL25853P |
Status information
volle Produktion
Vorserie
Nicht für neues Design geplant
Bestellung und Versand sind noch möglich
Ausgelaufen
|
||
| TSL25853PM |
Status information
volle Produktion
Vorserie
Nicht für neues Design geplant
Bestellung und Versand sind noch möglich
Ausgelaufen
|
Downloads
Für weitere Dokumente besuchen Sie unser
Download Center
Anwendungshinweise
LightSensors Pre-ProductionValidation AN001002
Product related
Umweltdokumente
TSL2585_RC001034_2-00
RoHS certificate
Bilder

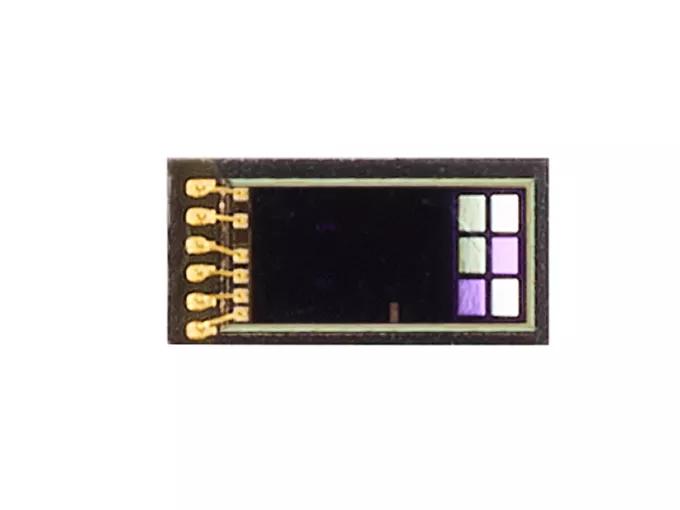

TSL2585

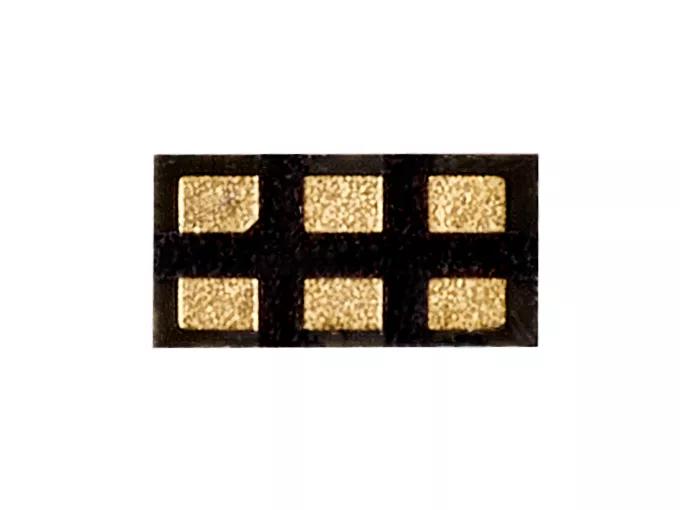

TSL2585

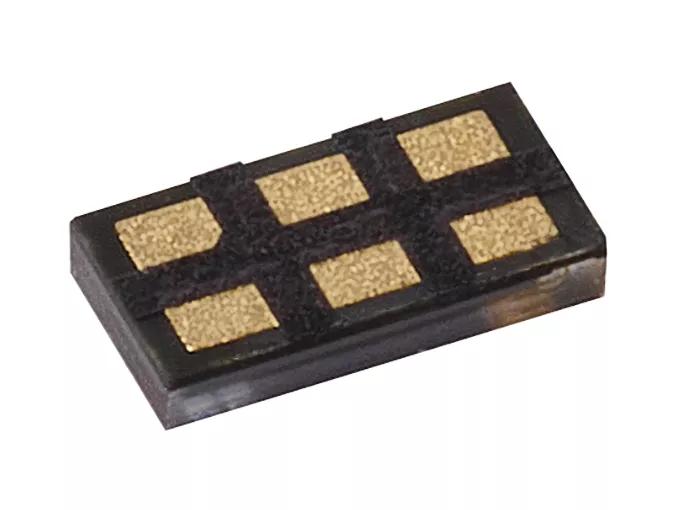

TSL2585
TSL2585
TSL25853P

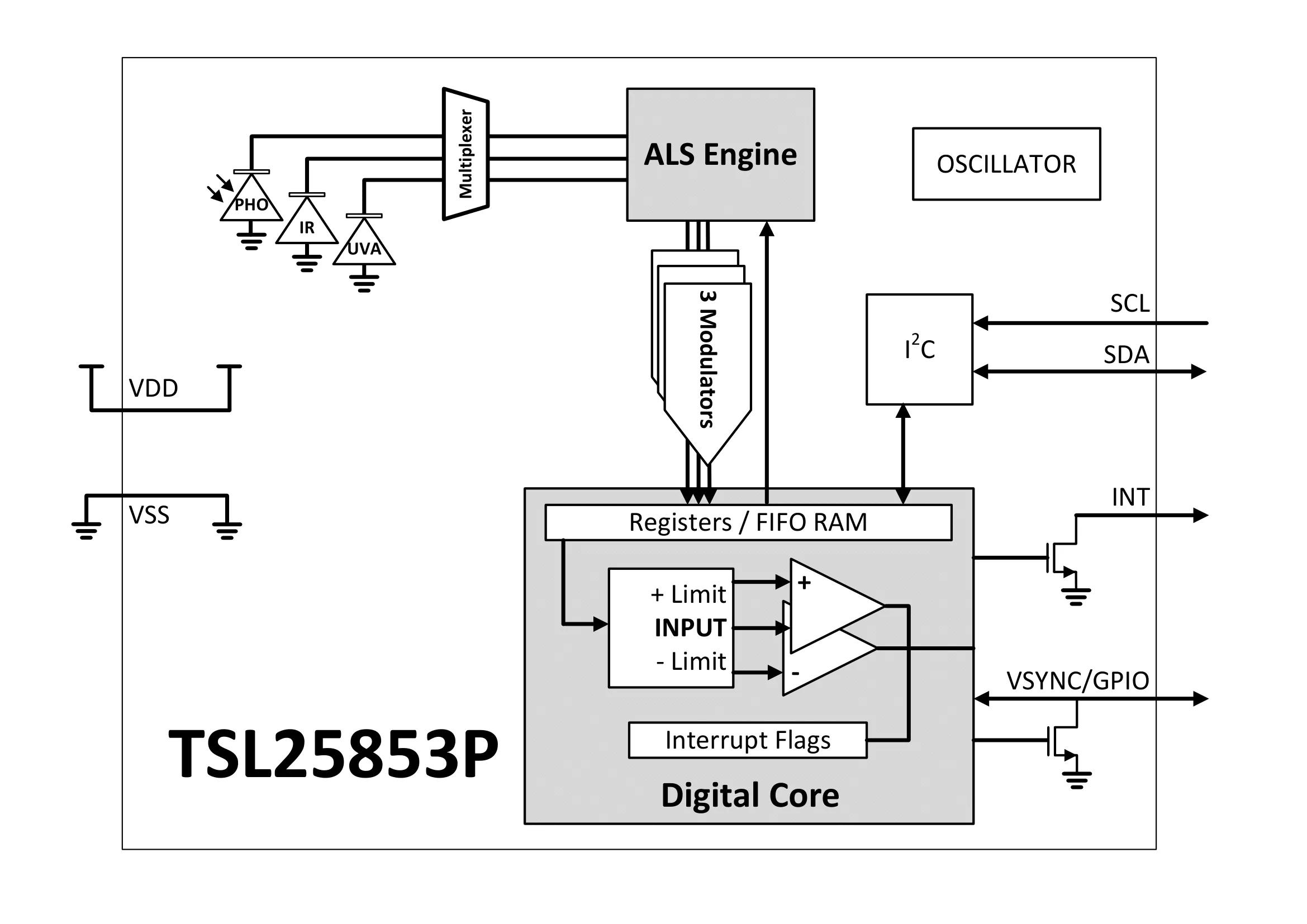

Block diagram
Related boards, kits & accessories
ams TSL2585_EVM_ST Evaluation kit
The TSL2585 Evaluation Kit comes with everything needed to evaluate the TSL2585 light sensor module. The evaluation kit comprises of a main controller board with a PIC microcontroller, an industry standard USB 2.0 interface (with an USB cable), a TSL2585 module daughter card, "plug-n-play" USB HID class drivers, software documentation, and GUI software allowing users to control the light sensor settings as the PIC takes the TSL2585 I²C digital outputs to calculate lux and UVI.
