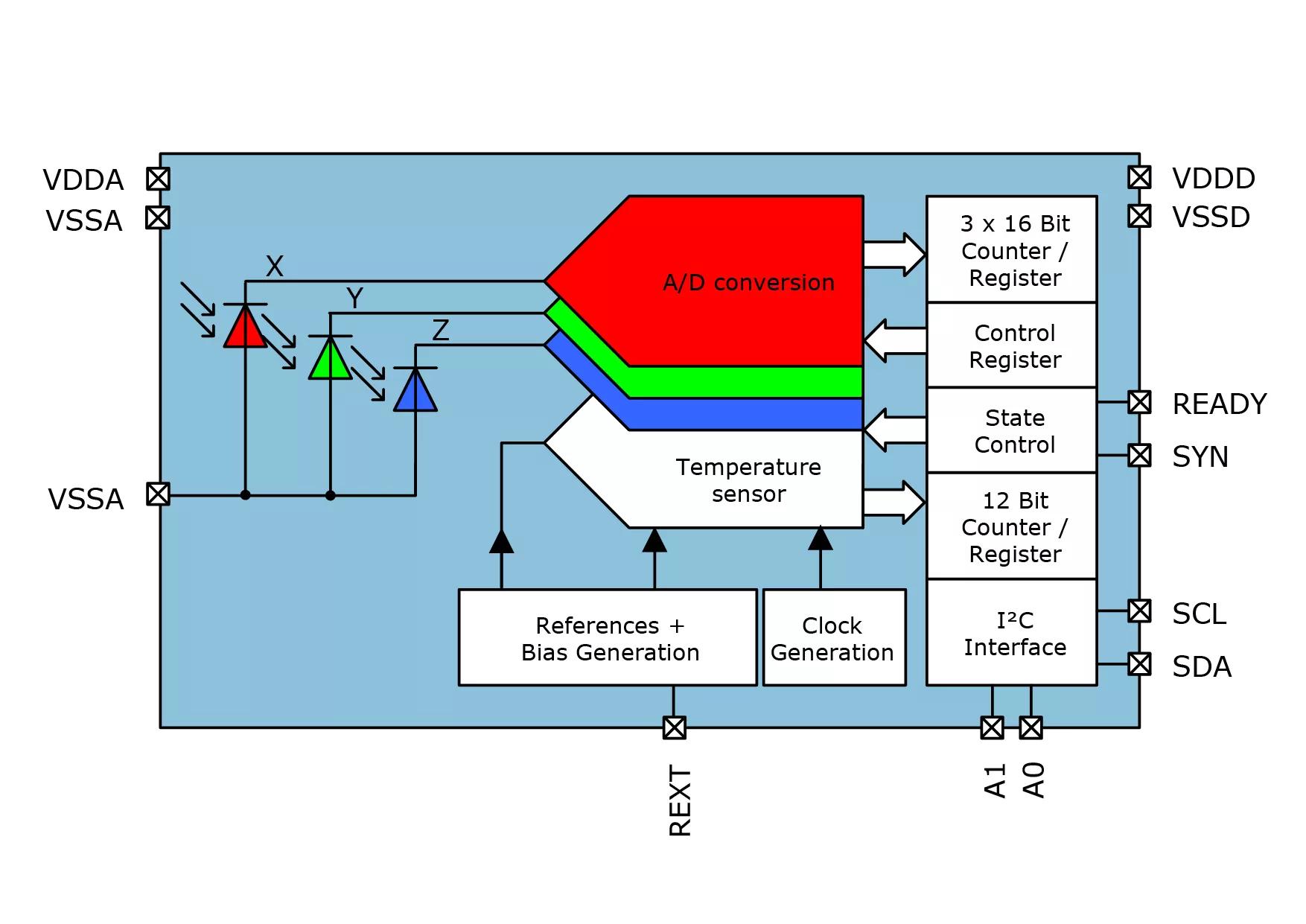

ams AS73211 - JENCOLOR® Digital XYZ Sensor

The AS7261 integrates Gaussian interference filter technology to enable chromatic white color sensor which provides direct XYZ color coordinates consistent with the CIE 1931 2° standard observer color coordinates. Additional mapping of XYZ coordinates to the x, y (Y) of the 2-dimensional color gamut and scales of the CIE 1976 u’v’ coordinate system, providing accurate correlated color temperature (CCT) measurements and color point deviation from the black body curve for white light color in the ∆u’v’ coordinate system. A near-IR channel and LED drivers with programmable currents increase application flexibility, including support for electronic shutter applications. Control and spectral data access is implemented either through either the I²C virtual register set, or via the serial UART enabling use of the high level smart spectral command set.

AS7341 is an 11-channel multi-spectral sensor for color detection and spectral analysis applications. The spectral response is defined in the wavelengths from approximately 350nm to 1000nm. 6 channels can be processed in parallel by independent ADCs while the other channels are accessible via a multiplexer. 8 optical channels cover the visible spectrum, one channel can be used to measure near infra-red light and one channel is a photo diode without filter (“clear”). The device also integrates a dedicated channel to detect 50Hz or 60Hz ambient light flicker. The flicker detection engine can also buffer data for calculating other flicker frequencies externally. The NIR channel in combination with the other VIS channel may provide information of surrounding ambient light conditions (light source detection). The device can also be synchronized to external signals via pin GPIO. AS7341 integrates filters into standard CMOS silicon via Nano-optic deposited interference filtertechnology and its package provides a built in aperture to control the light entering the sensor array. Control and Spectral data access is implemented through a serial I²C interface. The device is available in an ultra-low profile package with dimensions of 3.1mm x 2mm x 1mm.
