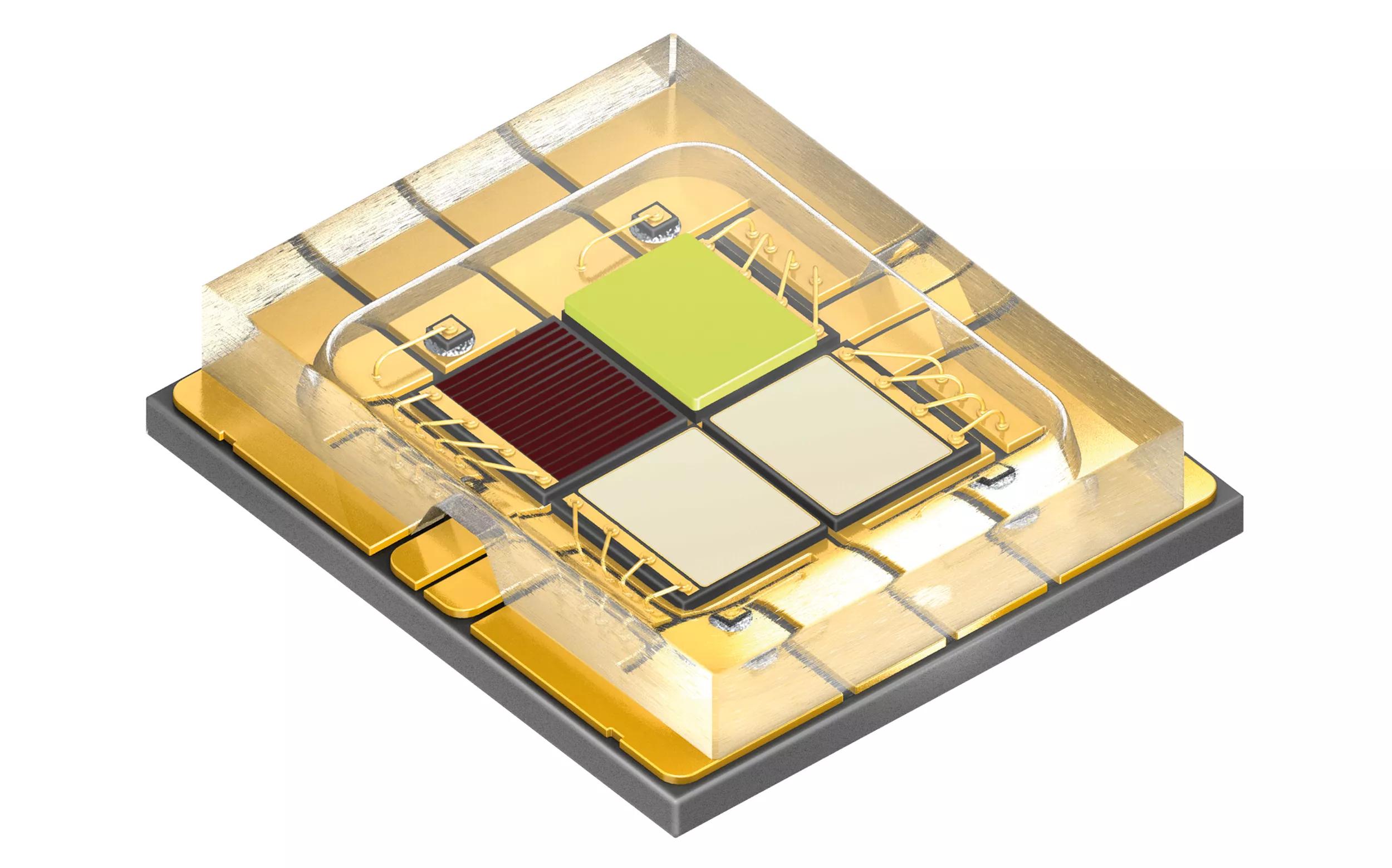

OSRAM OSRAM OSTAR™ Stage, LE RTDUW S2WP

×

Description

Outstanding brightness and luminance due to surface emission and low Rth
Datasheet
LE RTDUW S2WP
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Red (612-630 nm)
True Green (513-545 nm)
Deep Blue (439-461 nm)
White
Electrical power
3.3 W
3.9 W
4.2 W
4.2 W
High
High
High
High
Brightness
ΦV
196 lm
IV
70.5 cd
ΦE
1120 mW
IE
402 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
85 °C
Dimension
l
6.38 mm
w
5.75 mm
h
1.26 mm

Application fields

Lighting Entertainment

Ordering information

Product Type Description Ordering code Availability
LERTDUWS2WP-LAMB-1+NAPA-P+ABBB-P+NBPB-BQ ● ΦV = 112 ... 280 lm (IF□=□1400□mA)
● ΦV = 280 ... 560 lm (IF□=□1400□mA)
● ΦE = 1400 ... 2800 mW (IF□=□1400□mA)
● ΦV = 355 ... 710 lm (IF□=□1400□mA) 		Q65112A5475 Full production
LERTDUWS2WP-LBMB-1+NBPB-P+BABB-P+PAPB-BQ ● ΦV = 140 ... 280 lm (IF = 1400 mA)
● ΦV = 355 ... 710 lm (IF = 1400 mA)
● ΦE = 1800 ... 2800 mW (IF = 1400 mA)
● ΦV = 450 ... 710 lm (IF = 1400 mA) 		Q65113A5243 Full production

Downloads

Datasheets
LE RTDUW S2WP · Datasheet · PDF · en_US

Application note
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Ceramic LEDs — Details on handling and processing · Soldering and processing · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US
Package related thermal resistance of LEDs · Thermal management · PDF · en_US
LED solder point temperature measurement with thermocouples · Thermal management · PDF · en_US
Thermal management of LED light sources · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Dimming LEDs with respect to grouping current · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US
LED diagnosis in automotive applications · Electrical design · PDF · en_US

Resources
CAD Data · CAD Data · FOLDER
Optical Simulation · Optical Simulation · FOLDER

Images
OSRAM OSTAR Stage LE RTDUW S2WP · Images · TIF

Tools

LightGuide

Calculate the effectiveness of an LED based on a selected light guide by showing the amount of incoupled, reflected and missed light rays.

Open LightGuide

Product selector

Find the right product.
Product selector

More OSRAM OSTAR™ stage

OSTAR™ Stage makes the world’s stages & architectures shine in the most impressive way possible!
Explore more OSRAM OSTAR™ stage
