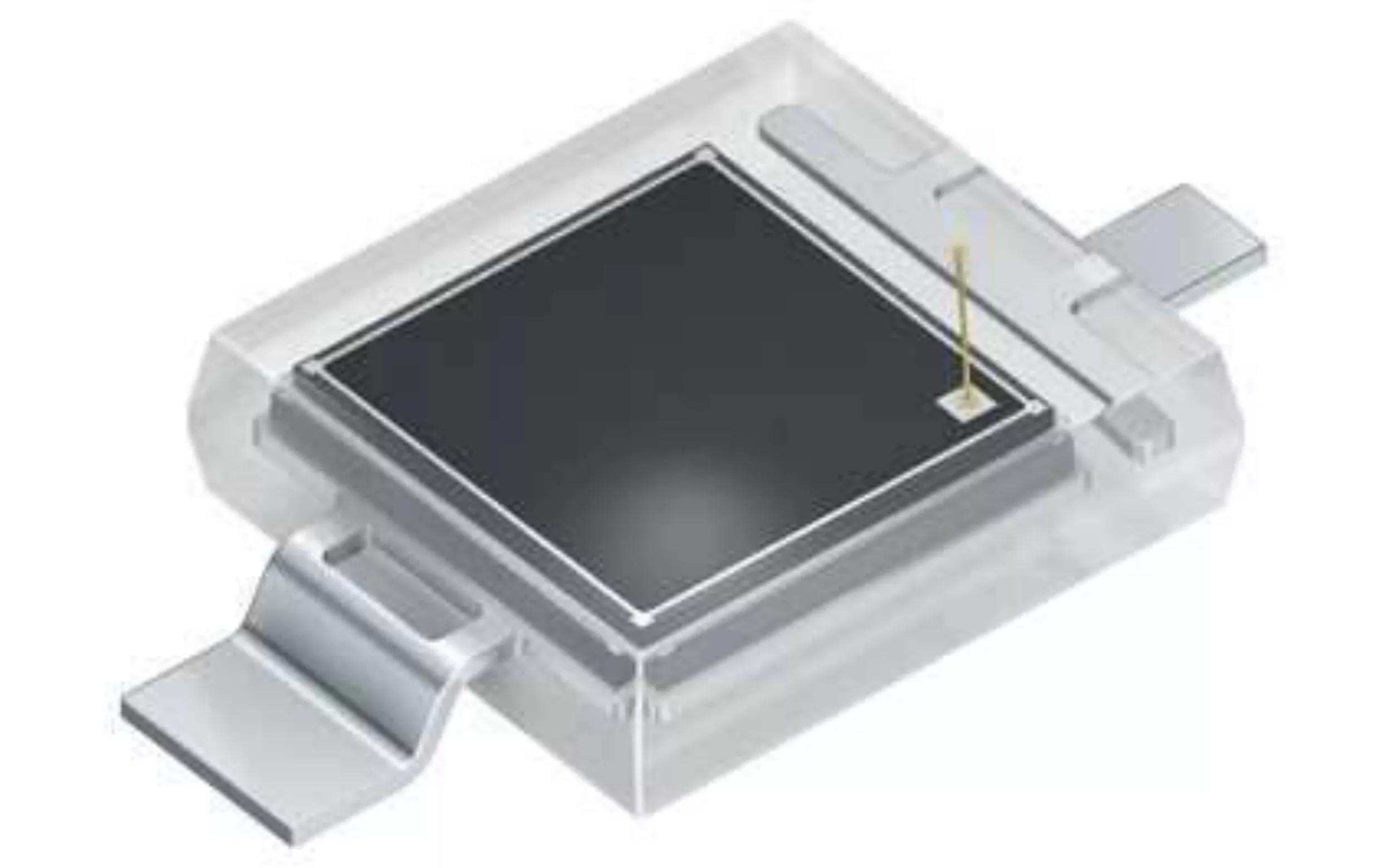

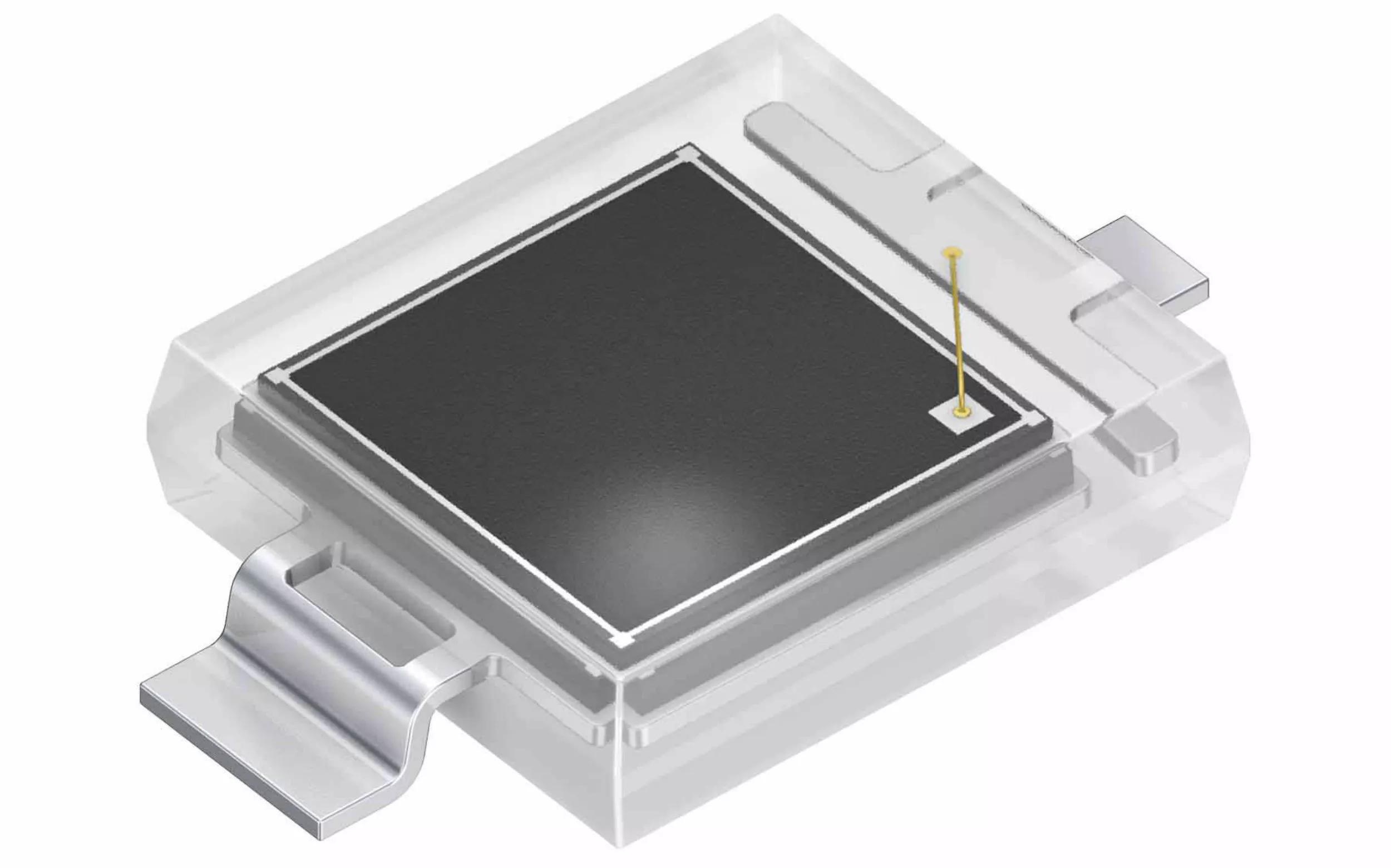

OSRAM DIL SMT Ambient Light Sensor, SFH 2440 L

OSRAM DIL SMT Ambient Light Sensor, SFH 2440 L
Discontinued
×
Discontinued

Description

Silicon Photodiode with Vλ Characteristic
Datasheet
SFH 2440 L
English
Download
Select & order
Contact us Support

Details

Parameters

Photocurrent
9.4 µA
Fall time
tf
0.09 µs
Rise time
tf
0.09 µs
Spectral range of sensitivity typ.
λ10% min.
400 nm
λ10% max.
690 nm
Radiant sensitive area
A
7.02 mm²
Beam angle
∢
120 °
Dimension
l
6.45 mm
w
3.85 mm
h
1.15 mm
Operating temperature
Top min.
-40 °C
Top max.
100 °C

Ordering codes

Product Type Description Order No. Availability
SFH 2440 L IP = ≥ 7.00 µA, (IP=9.4 µA typ.) (Ev=1000 lx) Q65112A0839
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
