Details
Features
- Direct ToF technology with high sensitivity SPAD detection
- 8x8 configurable multi-zone configuration with multi-object detection
- Adjustable field of view (up to 63° diagonal)
- Fast Time-to-Digital Converter (TDC) architecture
- Sub-nanosecond light pulse
- 10 – 5000mm distance sensing @ 30Hz
- On-chip histogram processing
- 940nm VCSEL Class 1 Eye Safety
- High performance on-chip sunlight rejection filter and algorithm
- Small modular OLGA 2.0mm x 4.6mm x 1.4mm package
Benefits
- Delivers high SNR, wide dynamic range and no multi-path reflections
- Enables dark and sunlight environment distance measurement within ±5%
- Adaptable FoV for custom scene matching
- Provides best-in-class resolution ranging mode detection sensing
- Enables accurate distance measurements
- Provides high accuracy, greater distance between cover glass, dynamic cover glass calibration, dirt or smudge removal and crosstalk compensation
- Eye-safety circuitry stops VCSEL driver if VCSEL fault occurs
- Optical filters with algorithm support enables high ambient light resilience
- Reduced board space requirements, enables low-profile system designs in restricted space Industrial designs
Parameters
Sensor zones
multi
Number of detection zones
64
Detection distance
max.
500
cm
Wafer level optical filters
Yes
Field of view
63
°
Operating ambient temperature
min.
-40
°C
max.
85
°C
Supply voltage
min.
2.7
V
max.
3.5
V
3.0
V
Wavelength
940 nm
Package
OLGA12
Package dimension
l
4.6
mm
w
2.0
mm
h
1.4
mm
Interface
input
I²C
output
I²C
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| TMF8828-1A | Q65114A1282 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
|
| TMF8828-1AM | Q65114A1281 |
Downloads
Datasheets
Datasheet
User guides
Quick start guide
User guide
Application note
Product related
Product related
Product related
Technical documents
Factsheet
Technical information
Technical information
Technical information
Technical information
Technical information
Technical note
Technical note
Technical note
Technical note
Environmental documents
RoHS certificate
Images

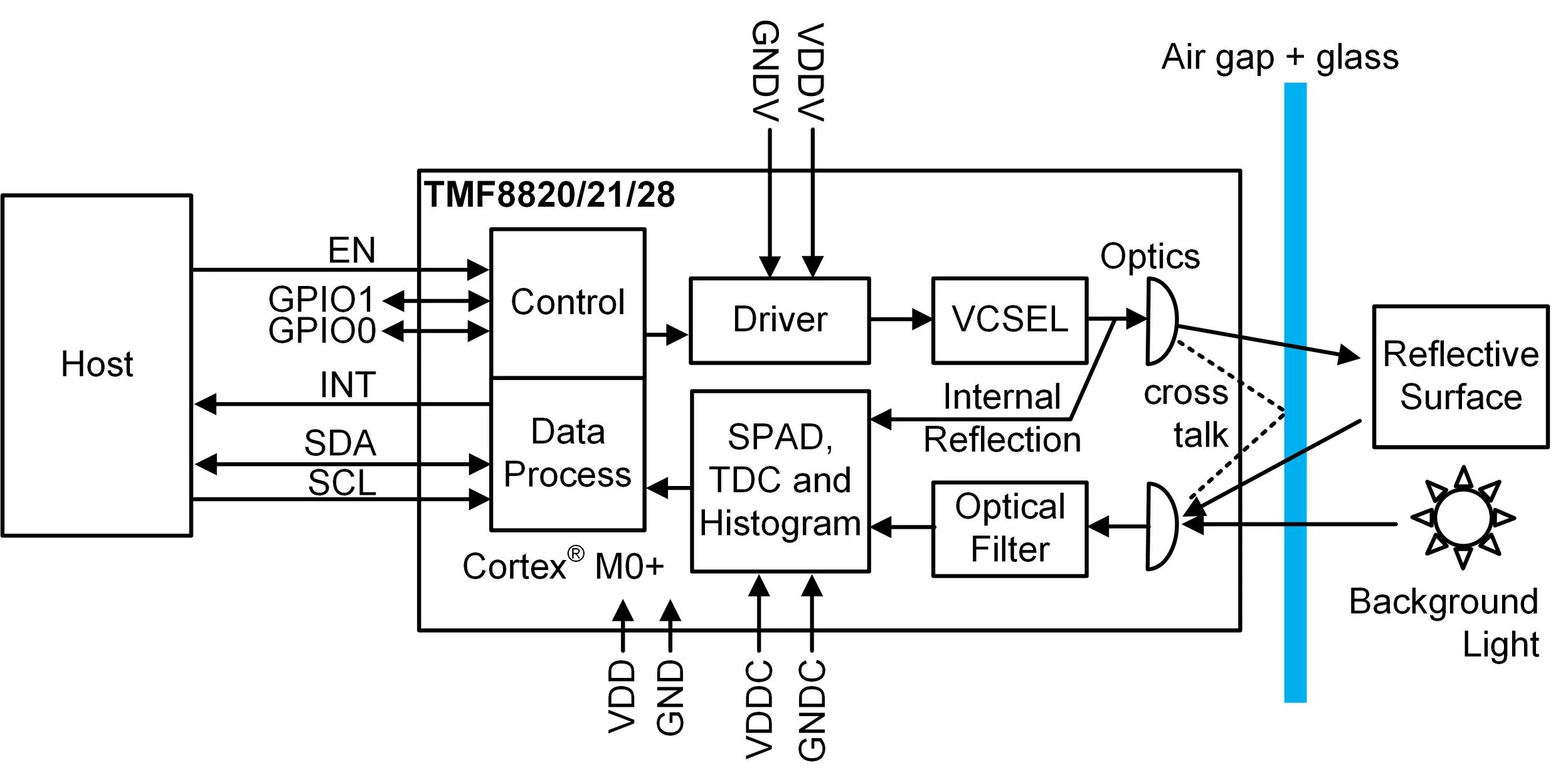

Block diagram
Software
Evaluation software
Evaluation software
Evaluation software
Related boards, kits & accessories
ams TMF882X_EVM_DB_DEMO Evaluation kit
The TMF882X Evaluation Kit comes with everything needed to evaluate the TMF8820, TMF8821 & TMF8828 multi-zone direct Time-of-Flight sensors. The evaluation kit comprises of a ToF sensor enclosure and sample glass, USB type A to micro-USB cable, USB Flash drive with EVM GUI software and EVM documentation.
ams TMF882X_EVM_EB_SHIELD Evaluation kit
The TMF882X MCU Shield board is desgined to fit the Arduino UNO µC development board format. This board features a small breakaway section which includes the TMF8828 device, 4 air gap spacers and 4 cover glass samples are included within this kit.
