Details
Eigenschaften
- Tri-stimulus XYZ+NIR realized by silicon interference filters
- Selectable UART or I²C interface
- 16-bit ADC with digital access
- Integrated programmable LED drivers
- integrated micro controller
- 20-pin LGA package 4.5mm x 4.7mm x 2.5mm, with built-in aperture
- In-factory calibrated
Vorteile
- Stable filter conditions over temperature and life time
- Compact true-color sensing, XYZ coordinates direct from the sensor
- Signal processing on chip, reduced hardware costs
- Sample illumination without external LED driver
- Easy connecting to mobile devices or external µController
Parameter
I/O
I²C master or UART (mode configurable)
Package
20-pin LGA with aperture
Size
[mm]
4.5 x 4.7 x 2.5
Applications
Color analysis and color calibration
Sensor Type
XYZ tri-stimulus/standard observer
Supply Voltage
[V]
2.7 to 3.6
Temperature Range
[°C]
-40 to +85
Anwendungsfelder
Ordering codes
| Produkttyp | Beschreibung | Bestellnummer | Verfügbarkeit | |
|---|---|---|---|---|
| AS7261-BLGM |
Status information
volle Produktion
Vorserie
Nicht für neues Design geplant
Bestellung und Versand sind noch möglich
Ausgelaufen
|
Order now
|
||
| AS7261-BLGT |
Status information
volle Produktion
Vorserie
Nicht für neues Design geplant
Bestellung und Versand sind noch möglich
Ausgelaufen
|
×
Downloads
Für weitere Dokumente besuchen Sie unser
Download Center
Datenblätter
AS7261 DS000493
Datasheet
Anwendungshinweise
Technische Dokumente
AS7261_FS000165
Factsheet
Umweltdokumente
AS7261_RC001040
RoHS certificate
Lebenszyklus-Dokumente
AS72xx_PN000172
Product change notification (PCN)
AS7261_BD000204

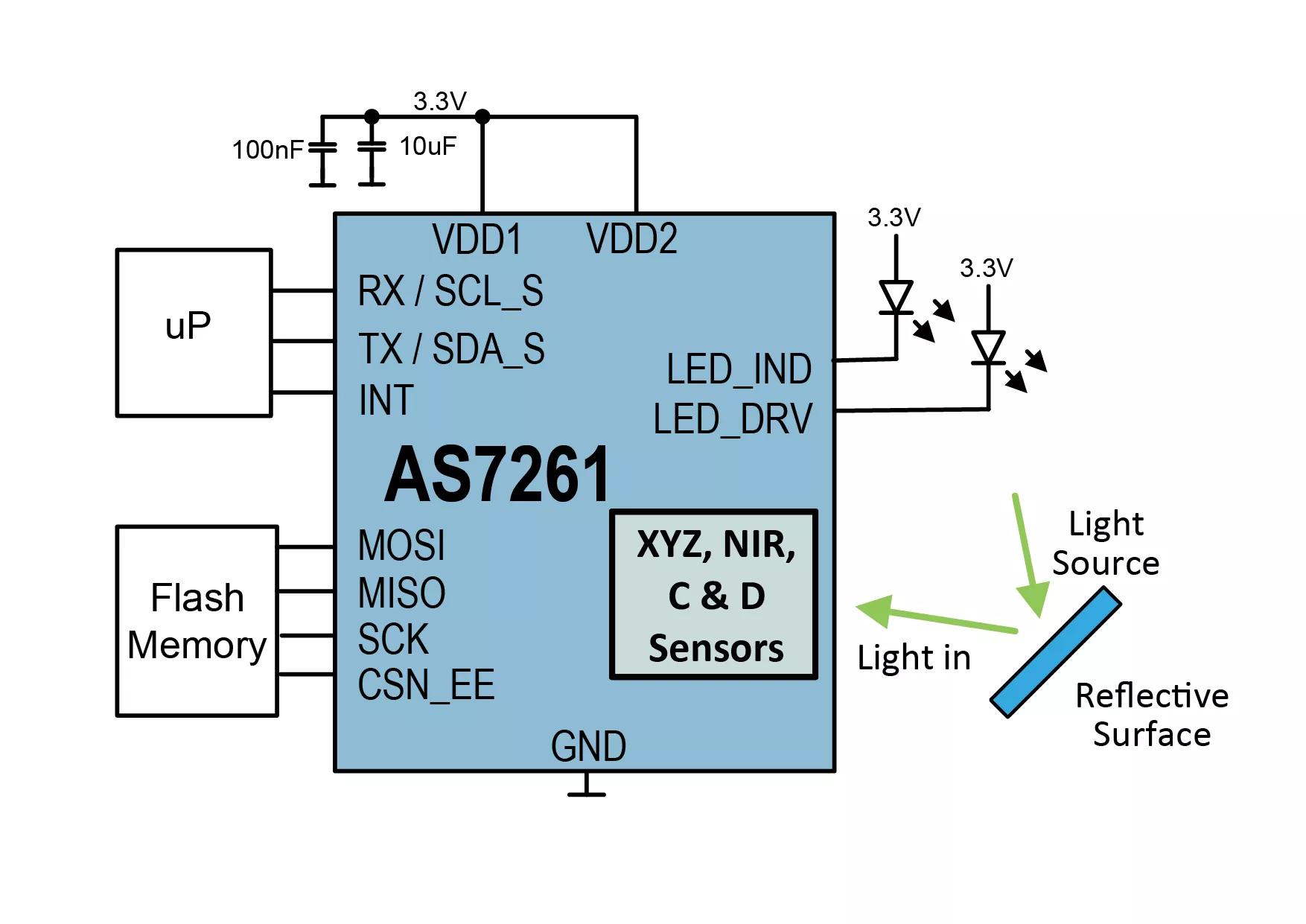

Block diagram
