Details
Features
- Integrated interference filters directly deposited on standard CMOS silicon
- 3 chip set delivering 18 VIS and NIR channels from 410nm to 940nm each with 20nm FWHM
- Integrated microcontroller on chip and low power consumption
- 2 integrated LED drivers per Sensor
- Selectable UART or I²C Interface
- Master-Slave-Slave sensor communication
- in-factory calibrated
Benefits
- Stable filter conditions over temperature and life time
- Detection of spectral fingerprints in visible + near infrared spectrum
- Signal processing on chip, reduced hardware costs
- Sample illumination without external LED driver
- Easy connecting to mobile devices or external µController
- Only one client from host perspective for sensor communication
Parameters
Package
20-pin LGA
Temperature Range
[°C]
-40 to +85
Supply Voltage
[V]
2.7 to 3.6
Size
[mm]
4.5 x 4.7 x 2.5
Applications
Authentication, analysis, spectroscopy
Sensor Type
3 chips, each 6 channels 410-940nm
I/O
UART or I²C slave digital Interface
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| AS72651-BLGT | |||
| AS72652-BLGT | |||
| AS72653-BLGT | |||
| AS72651-BLGM |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
||
| AS72652-BLGM | |||
| AS72653-BLGM |
Downloads
For other documents visit our
Download center
User guides
Application note
Lifecycle documents
AS72xx_PN000172_1-00
Product change notification (PCN)
Images
AS7265x

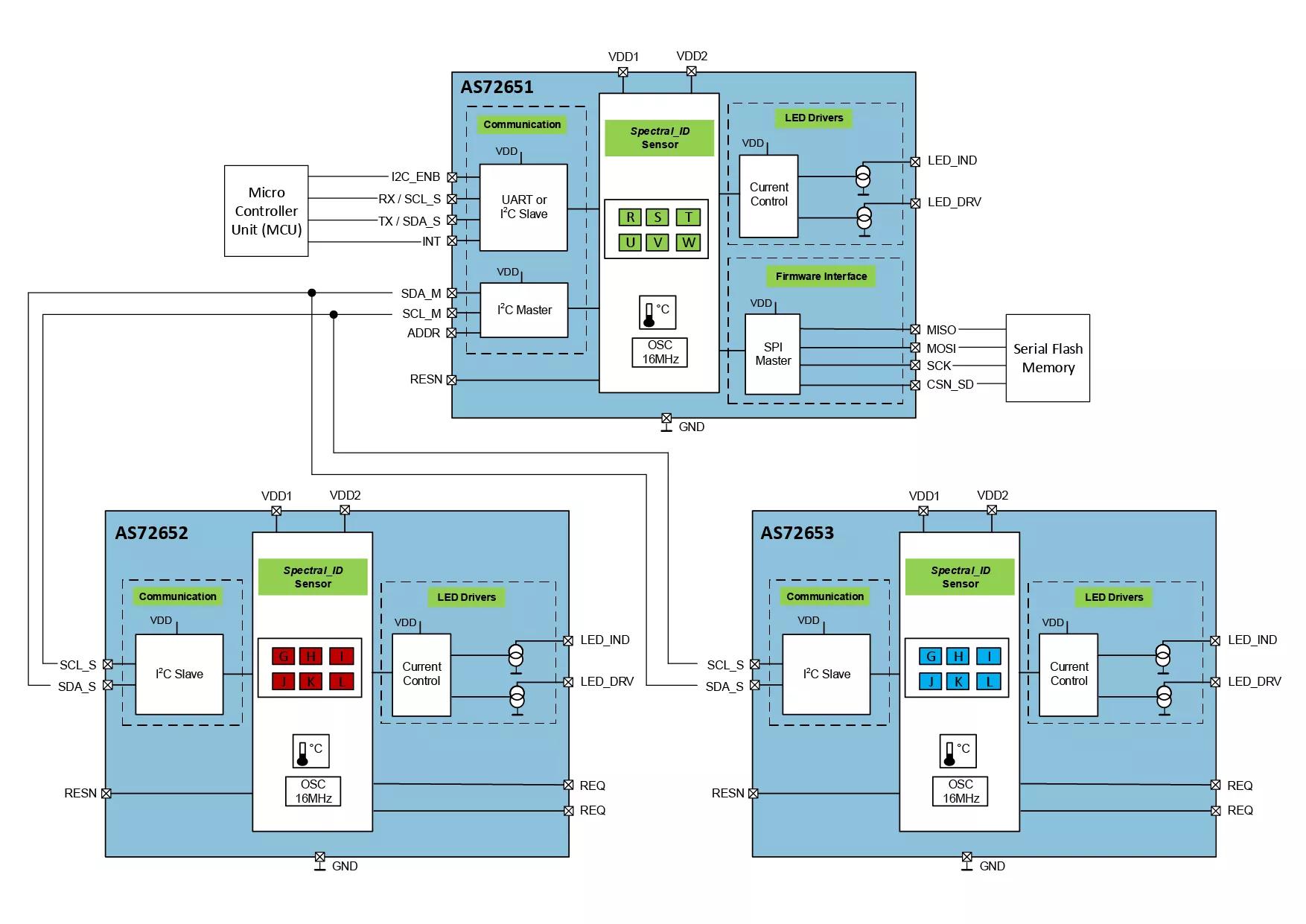

Block diagram
Related boards, kits & accessories
ams AS7265X_DEM_ST Demonstrator kit
The AS7265x Demo Kit is a Windows PC-hosted evaluation environment, designed to provide the user an quick-start approach to spectral sensing. The demo kit consists of the evaluation board, USB-UART cable with Micro-USB connector, and a USB stick which includes drivers, documentation and graphical user interface. The demo board includes unpopulated device pads for the installation of standard LED light sources suited to the specific spectral needs of the application. By default, the LED pads are unpopulated. If necessary also a housing can be provided on request.
