Details
Features
- Patented dual-diode architecture
- 1M:1 dynamic range
- Programmable LED drive current
- Programmable interrupt function
- Area efficient 2mm x 2mm Dual Flat no-lead (FN) package
Benefits
- Enables operation in IR light environments
- Enables operation in 10 kLux sunlight and accurate sensing behind spectrally distorting materials
- Allows multiple power level selection without external passives
- Reduces microprocessor interrupt overhead
- Reduces board space requirements while simplifying designs
Application fields
Downloads
For related software/further documents visit our
Download center
Datasheets
TSL2771 DS000105
Datasheet
Application note
Environmental documents
TSL2771_RC000210_1-00
RoHS certificate
Lifecycle documents
TCS3xxx_TSL2xxx_EN001015_1-00
Product discontinuation notification (PDN)
Images
TSL2771

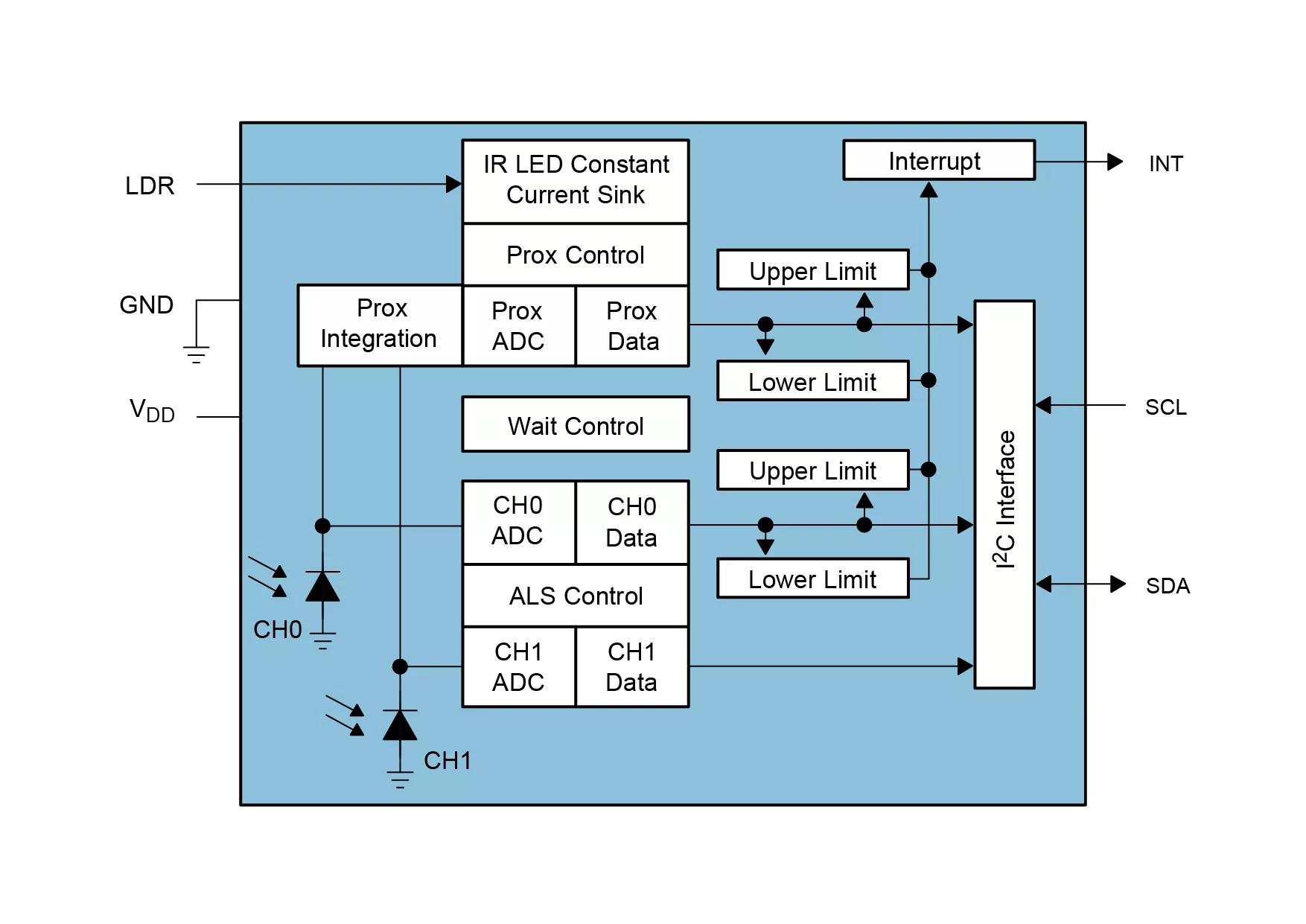

Block diagram
