Details
Features
- Color (RGB) and ambient light sensor with integrated UV/IR blocking filters
- IRBeam optical pattern generator
- Proximity detection with adaptive dynamic range, automatic crosstalk cancelation, and ambient light rejection
- Integrated optical module
Benefits
- Enables highly accurate color and ambient light sensing under varying lighting conditions
- Supports mobeam™ and universal remote control functionality
- Low profile, small footprint package reduces board space – ideal for small devices
Parameters
Function
color sensing
proximity detection
Supply voltage
1.8
V
min.
1.7
V
max.
2.0
V
Interface
input
I²C slave (400kHz)
output
I²C slave (400kHz)
Operating ambient temperature
min.
-30
°C
max.
85
°C
Emitter quantity
1 integrated
Integrated diffuser
No
Package
Module
Package dimension
l
5.0
mm
w
2.0
mm
h
1.0
mm
Input/Output Voltage
1.8 V
Application fields
Downloads
Datasheets
Datasheet
Application note
Product related
Product related
Product related
Product related
Product related
Product related
Product related
Technical documents
Factsheet
Environmental documents
Material declaration form
Material declaration form
Material declaration form
Lifecycle documents
Product discontinuation notification (PDN)
Images

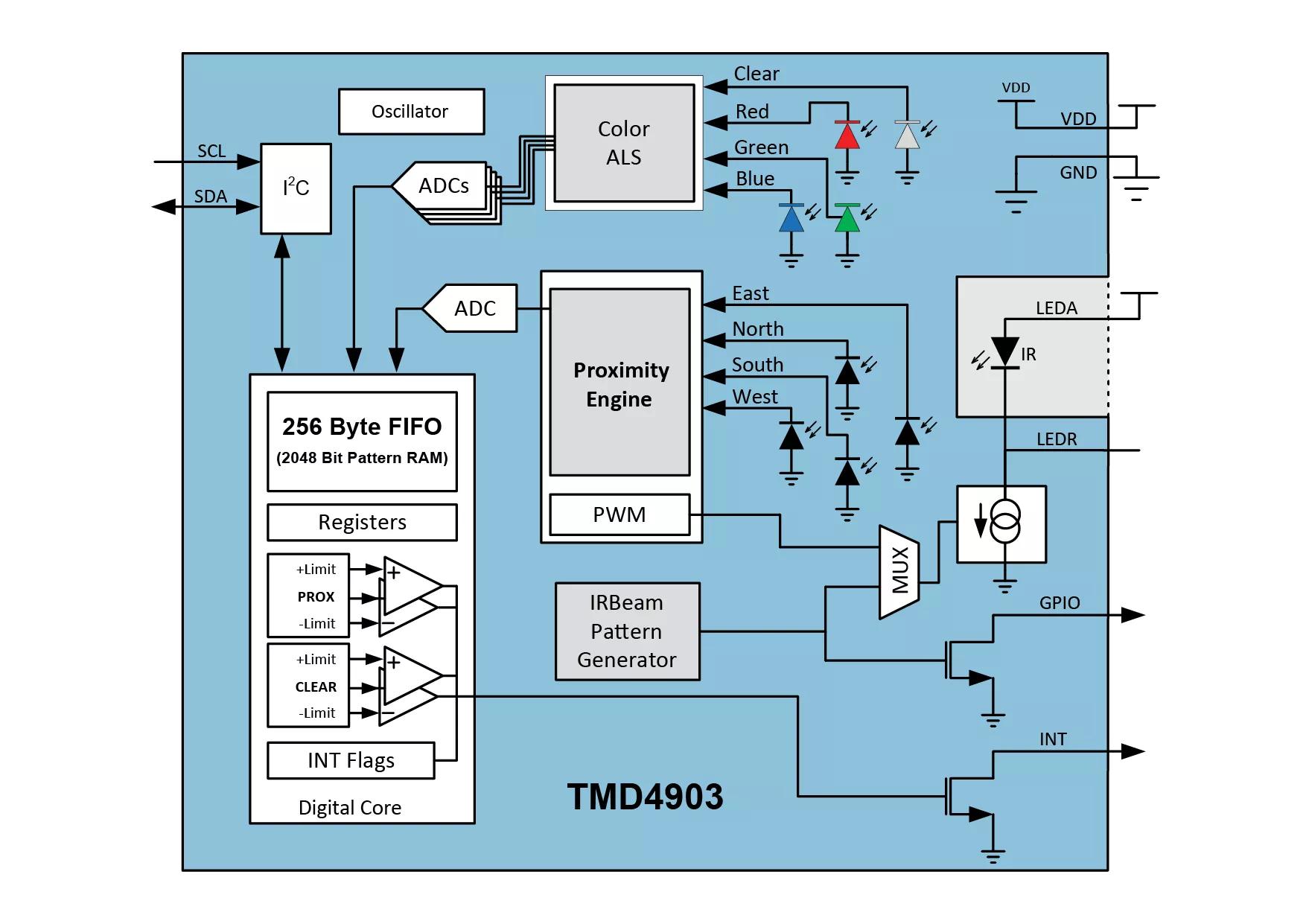

Block diagram
