Details
Features
- Patented dual-diode architecture
- 8M:1 dynamic range
- Programmable interrupt function
- UV-rejection package
- Area efficient 2mm x 2mm Dual Flat no-lead (FN) package
Benefits
- Enables operation in IR light environments
- Enables dark room to 60K lux sunlight operation
- Reduces microprocessor interrupt overhead
- Improves lux accuracy across various light sources
- Reduces board space requirements while simplifying designs
Parameters
Function
ambient light sensing
Supply voltage
3.0
V
min.
2.4
V
max.
3.6
V
Interface
input
I²C slave (400kHz)
output
I²C slave (400kHz)
Operating ambient temperature
min.
-30
°C
max.
70
°C
Integrated diffuser
No
Package
FN
Package dimension
l
2.0
mm
w
2.0
mm
h
0.65
mm
Input/Output Voltage
1.8 V
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| TSL25723FN |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
You will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Mouser
Buy now
|
Downloads
Datasheets
Datasheet
Application note
Product related
Product related
Product related
Product related
Product related
Product related
Product related
Product related
Product related
Product related
Product related
Product related
Technical documents
Factsheet
Environmental documents
Material declaration form
RoHS certificate
Lifecycle documents
Product change notification (PCN)
Images

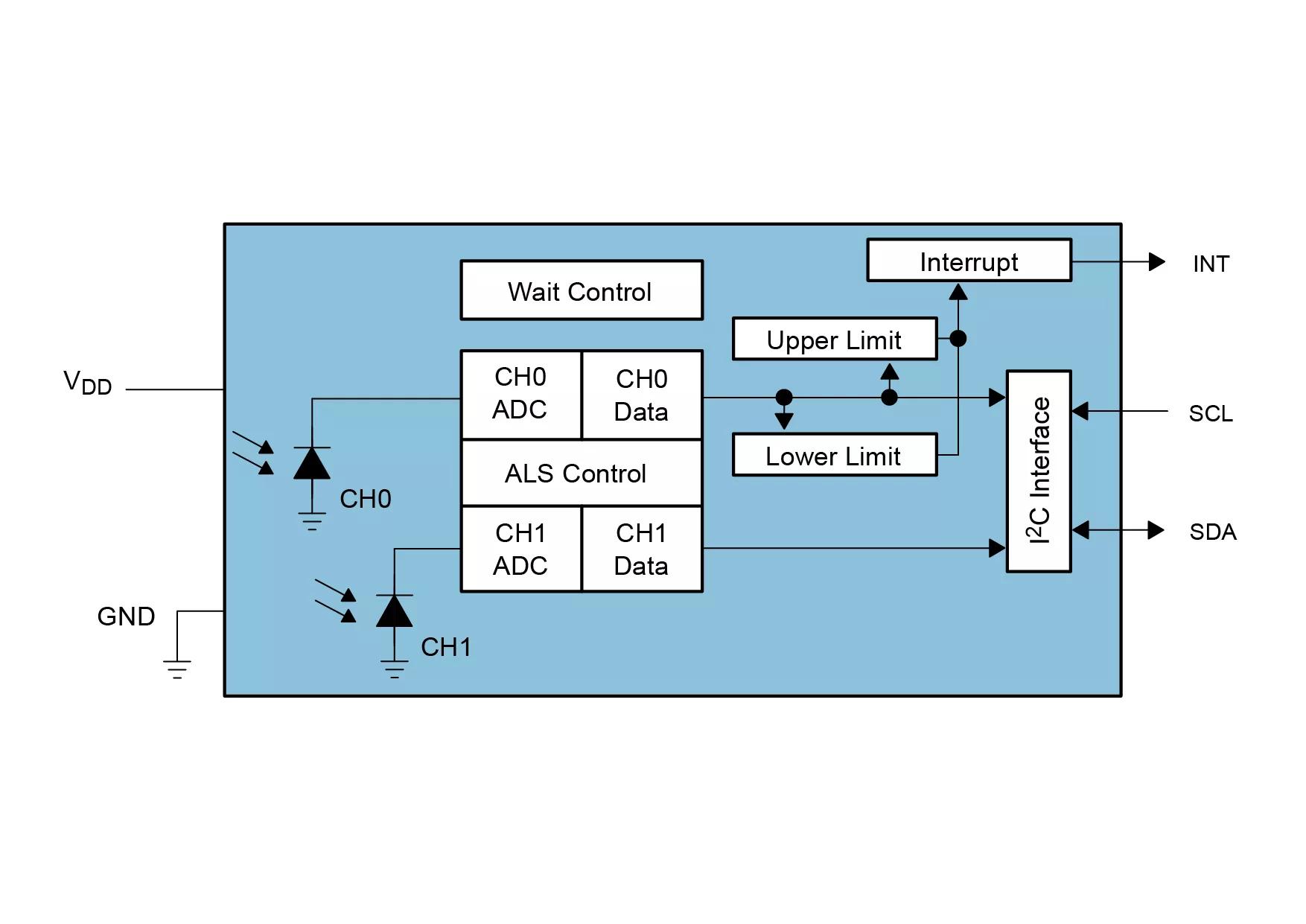

Block diagram
Product selector
Find the right product.
More ambient light, color, spectral & proximity sensors
Industry's broadest portfolio of high-performance and high-sensitivity digital discrete and integrated module optical sensors including ambient light sensors, RGB and XYZ color sensors, and spectral sensors.
