ams TSL2584TSV Ambient Light Sensor

×

Description

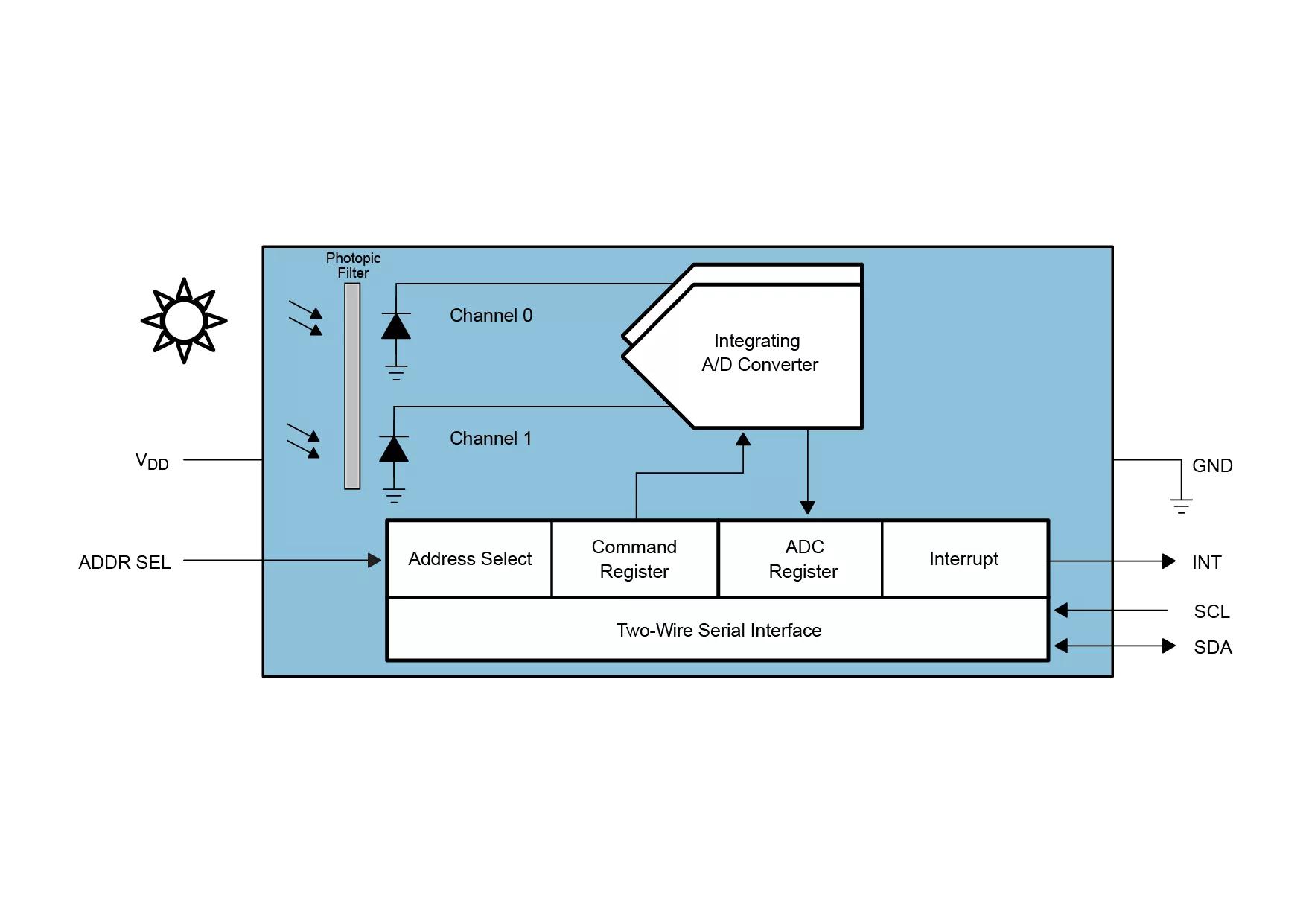

The TSL2584TSV is a very high sensitivity light-to-digital converter that transforms light intensity into a digital signal output with a fast mode I²C interface. The device combines one broadband photodiode (visible plus infrared), one infrared-responding photodiode, and a photopic infrared-blocking filter on a single CMOS integrated circuit. Two integrating analog-to-digital converters (ADCs) convert the photodiode currents into a digital output that represents the irradiance measured on each channel. This digital output can be input to a microprocessor where illuminance (ambient light level) in lux is derived using an empirical formula to approximate the human eye response. The TSL2584TSV supports a traditional level style interrupt that remains asserted until the firmware clears it.

Details

Features

  • Integrated on-chip photopic filter
  • Patented dual-diode architecture
  • 1M:1 dynamic range
  • Programmable interrupt function
  • Area efficient 1.145mm x 1.66mm x 0.32mm Through-Silicon-Via

Benefits

  • Provides near photopic responsiveness while allowing lux calculation regardless of glass type
  • Enables operation in IR light environments
  • Enables dark room to sunlight operation
  • Reduces microprocessor interrupt overhead
  • Enables operation in low profile applications

Ordering codes

Product Type Description Order No. Availability
TSL2584TSV
TSL2584TSVM
